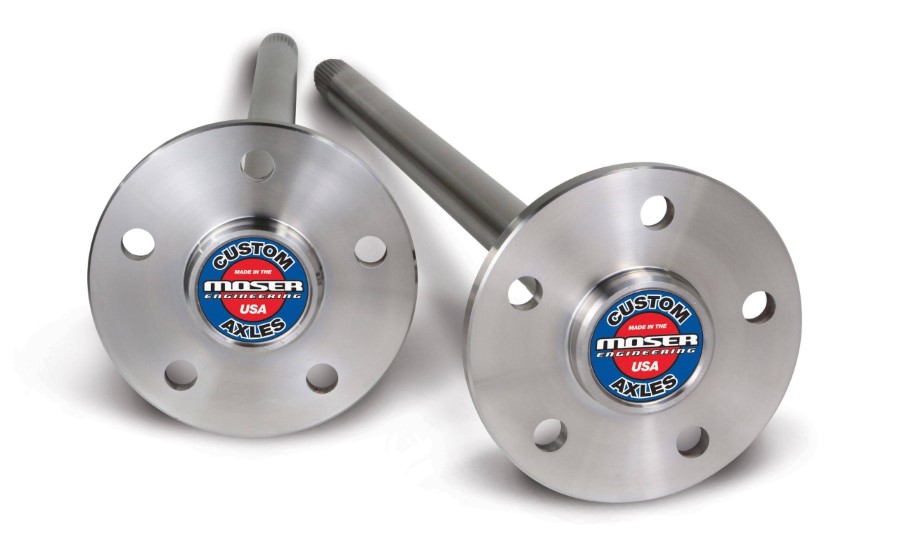

Moser Engineering Custom Length C-Clip 28 Spline Axles (1-PAIR) CST28

• Brand

  •

• TYPE OF REAR END

  • 8.8" Ford
  • 10-Bolt 7.5" & 7.625" GM
  • 10-Bolt 8.2" GM
  • 10-Bolt 8.5" GM Car
  • 10-Bolt 8.5" GM Truck
  • 7.5" Ford

• BEARING SEAT DIAMETER ("H")

  • 1.400"
  • 1.618"

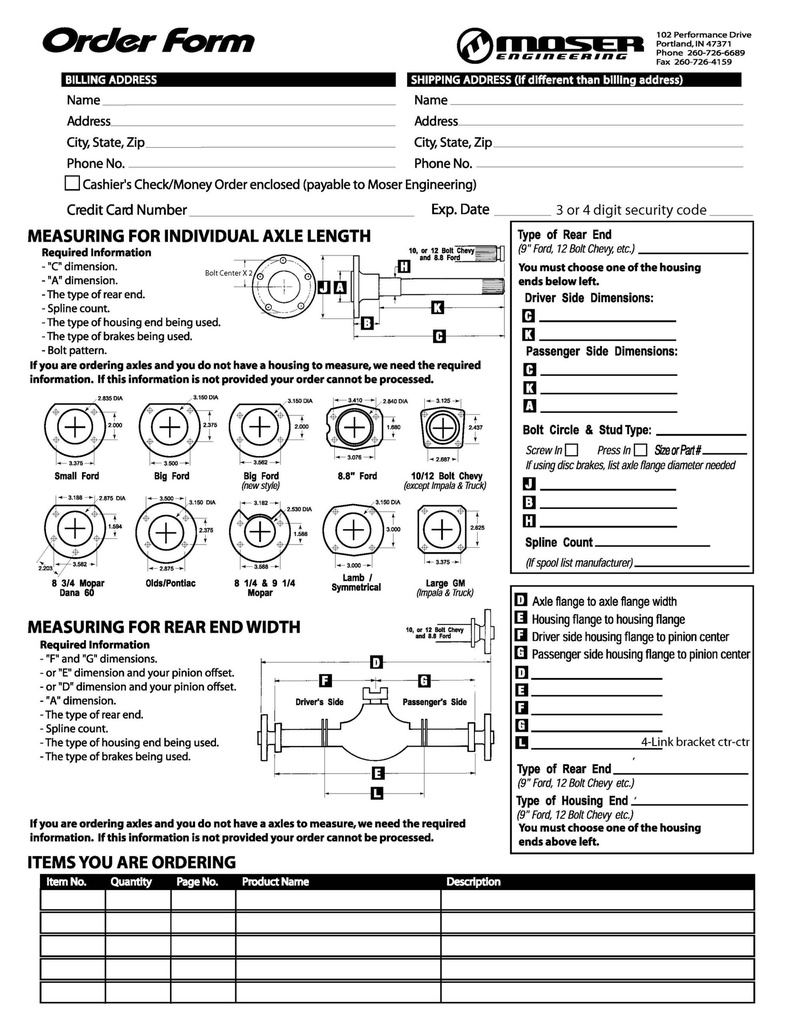

• DRIVER SIDE "C" (OVERALL AXLE LENGTH, FACE OF AXLE FLANGE TO END OF AXLE)

  • Driver Side "C" Measurement

• PASSENGER SIDE"C" (OVERALL AXLE LENGTH, FACE OF AXLE FLANGE TO END OF AXLE)

  • Passenger Side "C" Measurement

• HUB PILOT ("A")

  • Hub Pilot "A" Measurement

• BOLT PATTERN

  5 x 4 1/2" (Ford & Mopar) 5 x 4 3/4" (Chevy) 5 x 5" (Chevy & Ford) 5 x 5 1/2" (Ford) 6 x 5 1/2" (Chevy) 5 x 4" (Mopar) 5 x 135mm (Ford) 4 x 4 1/4" (Ford) 4 x 4 1/2"

• STUD TYPE (Does not include Studs, Studs must be ordered separately)

  1/2" Screw-In 5/8" Screw-In .480" Knurl (Press-In) .505" Knurl (Press-In) .620" Knurl (Press-In) .685" Knurl (Press-In)

• 2ND BOLT PATTERN (IF NECESSARY)

  None 5 x 4 1/2" (Ford, Mopar) + CA$ 48.36 5 x 4 3/4" (Chevy) + CA$ 48.36 5 x 5" (Chevy, Ford) + CA$ 48.36 5 x 5 1/2" (Ford) + CA$ 48.36 6 x 5 1/2" (Chevy) + CA$ 48.36 5 x 4" (Mopar) + CA$ 48.36 5 x 135mm (Ford) + CA$ 48.36 4 x 4 1/4" (Ford) + CA$ 48.36 4 x 4 1/2" + CA$ 48.36

• 2ND BOLT PATTERN STUD TYPE (Does not include Studs, Studs must be ordered separately)

  None 1/2" Screw-In 5/8" Screw-In .480" Knurl (Press-In) .505" Knurl (Press-In) .620" Knurl (Press-In) .685" Knurl (Press-In)

• AXLE FLANGE DIAMETER ("J")

  • Axle Flange Diameter "J" Measurement

• TYPE OF BRAKES AND/OR MANUFACTURES PART NUMBER

  • Type of Brakes and/or Manufactures part number

• TYPE OF DIFFERENTIAL AND/OR MANUFACTURE

  • Type of Differential and/or Manufacture

• AXLE FLANGE TO AXLE FLANGE ("D")

  • Axle Flange to Axle Flange "D" Measurement

• HOUSING END TO HOUSING END ("E")

  • Housing End to Housing End "E" Measurement

• DRIVER SIDE HOUSING END TO PINION CENTER ("F") (DO NOT measure through the tubes)

  • Driver Side Housing End to Pinion Center "F" Measurement

• PASSENGER SIDE HOUSING END TO PINION CENTER ("G") (DO NOT measure through the tubes)

  • Passenger Side Housing End to Pinion Center "G" Measurement

• ADDITIONAL OPTIONS

  • None
  • 1994-2004 Mustang ABS Prep + CA$ 20.73
  • 1993-2002 GM F-Body ABS Prep + CA$ 82.90

This combination does not exist.
