- Gain over 220 RWHP on stock applications

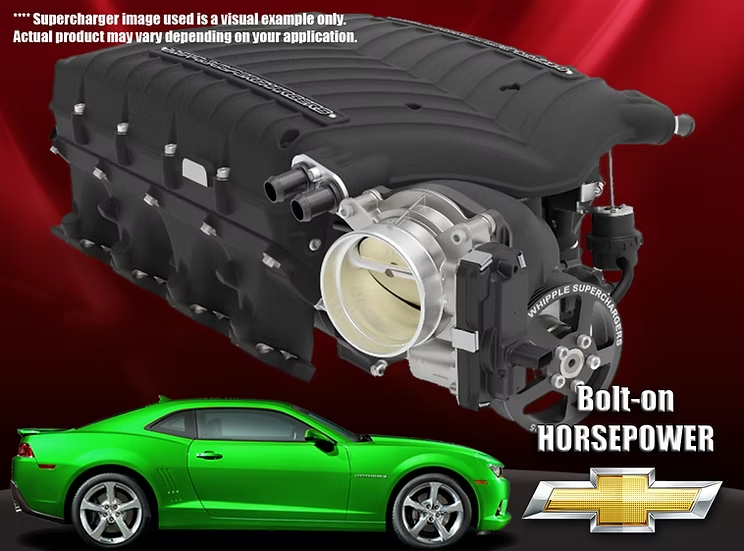

- Front-feed Gen 4 W175ax 2.9L Whipple twin-screw supercharger
- High-efficiency air-to-water intercooler and oversized heat exchanger
- Includes calibration for stock vehicles or cat-back only setups
- Fits 2013-2015 Chevrolet Camaro LS3 applications
- Complete bolt-on system with fuel system upgrades
- CARB certified and 50-state legal
Key Features:
- 50-state legal performance upgrade (CARB EO D-231-68)
- Gain over 220 RWHP on stock applications
- Front-feed Gen 4 W175ax 2.9L Whipple twin-screw supercharger
- Integrated casting minimizes bolt-on pieces, adapters, leaks and flow restrictions
- Integrated Crusher™ venturi shaped inlet for maximum airflow capacity and minimal rotor cavitation
- Integrated Crusher™ 112mm round inlet outflows smaller 90 and 93mm inlets used on other Eaton-based systems
- Integrated Crusher™ 112mm round inlet supports optional 102mm throttle bodies
- Big Mouth Whipple Crusher™ plastic air inlet, or optional carbon fiber, for increased velocity and lower inlet temperatures
- High-efficiency air-to-water intercooler system
- Integrated design allows for an oversized intercooler core compared to smaller competing systems, helping reduce air charge temperatures and support more boost and timing on pump gas
- Massive air-to-water aluminum bar-plate intercooler offers excellent cooling capacity
- Oversized heat exchanger for improved intercooler water temperatures
- Whipple Superchargers oversized intercooled air-bypass system for strong burst-knock reduction and excellent fuel economy
- Self-contained oversized oil system for reduced oil temperatures under demanding conditions
- Zero turn inlet design reduces induction losses compared to rear inlet systems and 180-degree bends
- Discharge down design reduces pressure loss for more power at lower boost levels
- Top mount design helps maintain cooler operation than upside-down supercharger layouts
- More boost at the "hit" than other twin-screw systems

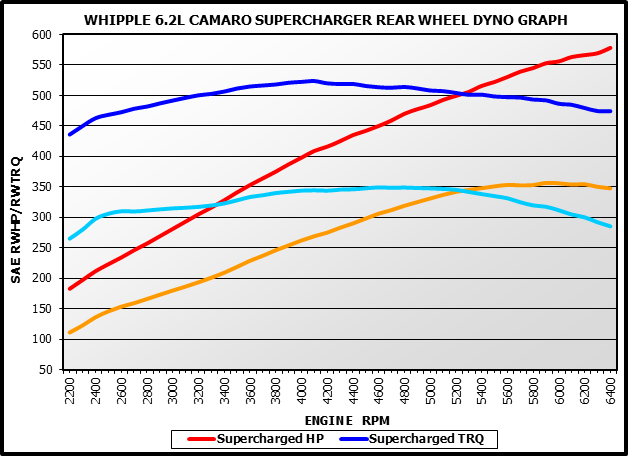

- Flat torque curve for strong acceleration throughout the RPM range
- Complete bolt-on system with fuel system upgrades
- Designed for stock or cat-back only vehicles with supplied calibration
- Stock airbox required for Whipple tuning
- Factory air box, factory MAF, and Whipple air inlet duct required with supplied calibration
- Premium fuel only, 91 octane or better
- NGK Iridium IX TR7IX spark plugs gapped to .035"
- Whipple SC oil serviceable through sight glass, 7.5 to 8.0 fl oz fill
- OEM quick-connect fittings for easier installation
- Available in wrinkle black, polish, or custom colors
- Instant boost at the touch of the throttle
- 3 minute pulley changes
