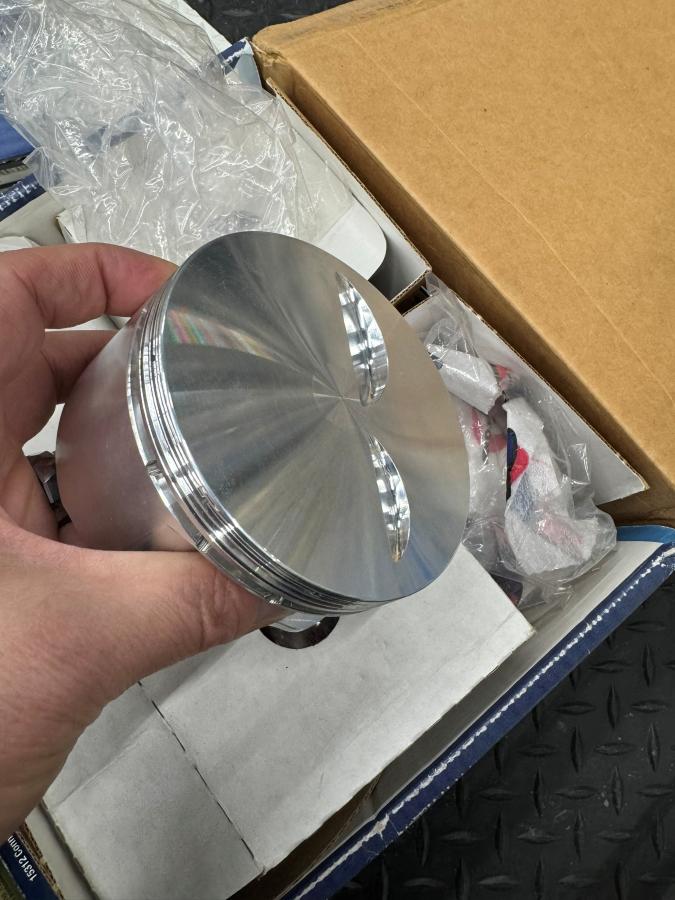

JE Pistons 23º Ultra-Light Gas Ported Chevrolet 350 Small Block Piston Kit 194337

SBC Forged Piston Set of 8 4.060 Bore 6.0" rod

CA$ 999.00 999.0 CAD CA$ 999.00

This combination does not exist.

Add to Cart

SKU:

JEPI194337

194337

Piston Series	JE Pistons
Cylinder Head	STD CHEVROLET 23 DEG
Bore Diameter	4.060 IN
Piston Head Type	Flat
Compression Height	1.250 IN
Piston Volume	-1.50 CC
Piston Material	2618
Forging Type	Round
Piston Average Weight	374 GR
Ring Set Included	No
Top Compression Ring Thickness	0.0436 IN
Second Compression Ring Thickness	0.0440 IN
Oil Ring Thickness	0.119 IN
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Length	2.400 IN
Wrist Pin Wall Thickness	0.130 IN
Intake Depth	.190 IN
Intake Diameter	2.170 IN
Intake Angle	23
Exhaust Depth	S
Exhaust Diameter	1.750
Exhaust Angle	23
Top Groove Width	0.04360 IN
2nd Groove Width	0.04400 IN
Oil Groove Width	0.11900 IN
