SCT 7015PG-B 2021–2023 Ford F Series Gas Cable/X4 Bundle
2021 – 2023 F Series Gas 5.0 and Ecoboost Cable/X4 Programmer Bundle
This X4, sold as a package (7015PB-G) includes the X4 tuner and a special ECM cable which allows users to directly unlock the vehicle's Powertrain Control Module (PCM) without sending it to HPtuners.
**All software including the Device Updater is not Mac compatible. A PC with Windows Vista/7/8/10 will be required.**
FREE 2 DAY AIR FRIEGHT BY PUROLATOR
Ships Same Day If Ordered By 3pm CST
SCT X4 Power Flash Programmer - #7015PB-G
The SCT X4 7015PB-G is a handheld tuner designed for specifically 2021-2023 Ford F-150 trucks equipped with a gas engine (2.7L, 3.5L EcoBoost, 5.0L V8). This allows users to increase the performance of trucks through the PCM without having to remove it for the HPtuners MG1 Service. The 7015PB-G can store up to 10 custom tunes built by SCT authorized tuning professionals. It is well suited for users who plan to do changes to the intake, gear ratio, tire size, and much more.

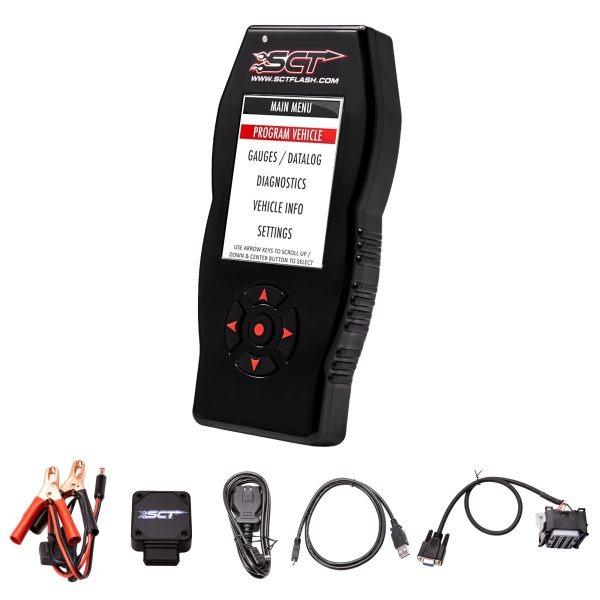

What's Included In The Box:
- SCT X4 7015 Tuner
- PCM Adapter/Connector
- USB Cables
- SCT Emblem
Features:
Direct to Vehicle Flashing
- Install tuning files directly to the vehicles PCM without having to remove & ship it to HPtuners for the MG1 PCM service.
Custom Tuning Support
- Accepts up to 10 custom tunes for vehicle's specific set-ups
Real-Time Data Logging
- Displays live engine and transmission data on a full-color screen. Parameters include intake air temperature, boost pressure, spark timing, throttle position, and more.
Diagnostic Code reading
- Reads and clears diagnostic trouble codes (DTC's). Useful for maintenance and troubleshooting without scan tools.
Adjustable Options:
Tire Size Calibration
- Correct the speedometer if you have changed your tire size from the stock size
Axles Ratio
- Correct the vehicle's speedometer if you have changed the gear ration on your vehicle
TPMS
- Adjust the Tire Pressure Monitoring System
Speed Limiter
- Change the top speed that the vehicle will reach before the engine limits the power needed to go faster
Auto Start/Stop
- Disable the auto start/stop
Crank Re-Learn
- Recalibrate the PCM's relationship between the crankshaft and camshaft
KAM Reset
- KAM stands for Keep Alive Memory and is where all the learned adjustments that the computer has made over time. Most of these are settings for fuel trims and information to help with idle stability. You would want to reset the KAM after fixing a mechanical issue like an air leak or a bad tank of gas.
Vehicle Compatibility:
- 2021 Ford F-150 2.7L EcoBoost
- 2021 Ford F-150 3.3L PFDI
- 2021 Ford F-150 3.5L EcoBoost
- 2021 Ford F-150 5.0L Coyote
- 2022 Ford F-150 2.7L EcoBoost
- 2022 Ford F-150 3.3L PFDI
- 2022 Ford F-150 3.5L EcoBoost
- 2022 Ford F-150 5.0L Coyote
- 2023 Ford F-150 3.3L PFDI
- 2023 Ford F-150 5.0L Coyote
Custom Tuning Only:
2021 Ford F-150 3.5L Powerboost
2022 Ford F-150 3.5L Powerboost
| Brand | SCT |
