- Whipple Gen 6 3.0L Supercharger
- *825HP, 655FT-LB of torque on 93 Octane
- Billet 132mm Roval throttle body with oversized 150mm Crusher™ inlet
- Patented dual-pass, dual-core intercooler technology
- Massive heat exchanger, intercooler reservoir, and high flow IC pump for unmatched cooling capacity
- Billet fuel rails, high flow fuel injectors, and DW400 fuel pump upgrade
- HP Tuners MPVI4 flash tool with Whipple calibration support
- CARB certified and 50-state legal
WHIPPLE SUPERCHARGERS 2022-2023 MUSTANG GT STAGE 2 KEY FEATURES:
- 50-state legal, CARB EO D-231-105
- Up to 825 flywheel HP and 655 FT-LB of torque on 93 octane*
- No other upgrades required, just massive power right out of the box
- Whipple Gen 6 W185ax (3.0 liters/3000cc) twin-screw supercharger
- Stage 2 system with billet 132mm Roval throttle body
- Generation 6 design features new bearings, gears, rotors, and housing for improved efficiency and reliability
- Advanced 3x4 rotor profile with 285° helix angle for improved airflow and efficiency across the RPM range
- Front entry Gen 6 W185ax Whipple twin-screw supercharger that significantly outperforms smaller 2.3L and 2.65L roots-type systems
- 3.0L is 13% larger than 2.65L roots-type systems, allowing lower power draw and lower discharge temps while moving the same amount of air
- Oversized Crusher™ 150mm inlet for maximum airflow capacity and minimal rotor cavitation
- Billet 132mm Whipple Roval throttle body
- Exclusive 3x4 rotor combo for significant increase in airflow under the curve compared to less efficient 4x4 roots designs
- More boost at the "hit" than other twin-screw systems
- Flat torque curve for incredible acceleration

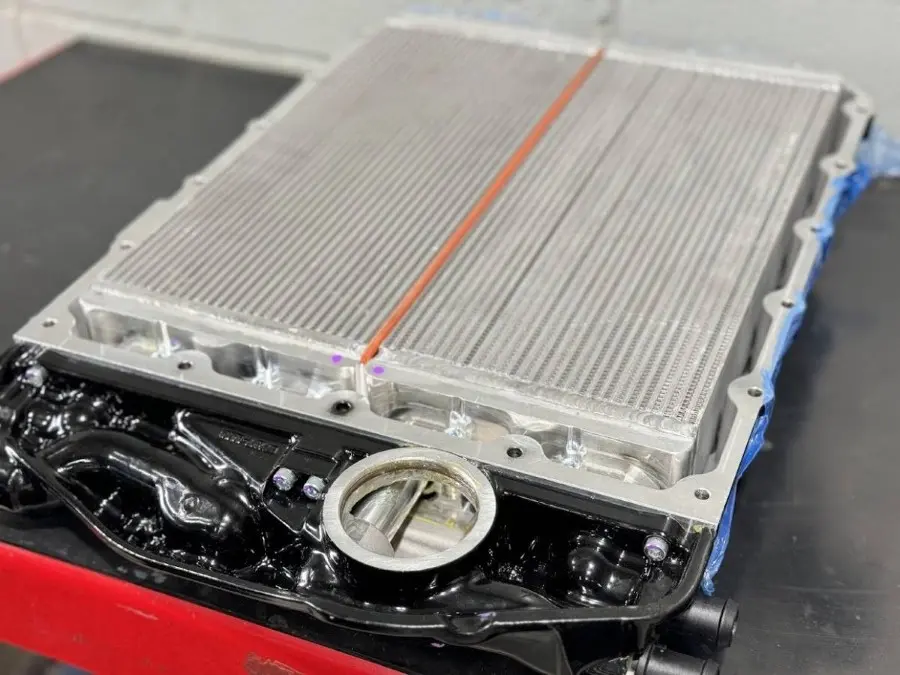

- Largest intercooler system on the market, featuring patented dual intercooler, dual pass technology
- Inverted design allows for oversized intercooler core compared to smaller competing systems, helping lower air charge temperatures and support more boost and timing on pump gas
- Massive air-to-water aluminum bar-plate intercoolers offer more cooling than smaller positive displacement systems
- High flow intercooler pump with nearly double the flow of standard units others use
- Oversized heat exchanger with 150% more volume than competing systems
- Extra plenum volume below intercooler core for less pressure drop and better use of the increased intercooler surface area
- Whipple Superchargers massive oversized intercooled air-bypass system for industry-leading reduction of burst knock and incredible fuel economy
- Billet fuel rails with high flow, dual-beam fuel injectors
- Included DW400 fuel pump upgrade for added fuel delivery capacity
- IAT2 harness and sensor included for post-intercooler air temperature monitoring
- HP Tuners MPVI4 flash tool with Whipple calibration support
- Colder iridium spark plugs included
- Fits under factory hood with no modifications
- No cutting or grinding on the engine block
- No cutting or grinding the K-brace
- Kits come complete with all necessary parts and hardware for installation
- Plug and play wiring with male and female connections
- Proven 6-rib belt system with heavy duty spring loaded tensioner and adjustable idler system
- OEM quick connect fittings for easy installation
- Optional 10-rib belt system with matching 6061-T6 billet pulleys
- Available in wrinkle black, polish, Ford textured blue or any custom color
- Instant boost at the touch of the throttle
- Easy belt changes
- Lightweight pocketed 6061-T6 billet aluminum SC pulley
*Power numbers are quoted with 93 octane under optimal conditions. Actual results may vary depending on conditions and testing procedures. 91 octane testing will always result in lower power numbers.
